Superior Under Rafter Insulation
Here at Multifoils Direct, we have created an EcoPro Under Rafter Insulation Kit, that you can install easily directly to the underside of your Roof Rafters.
Once the multifoil insulation has been fitted – your home will be more energy efficient. So, rather than your heat escaping directly above you, your heat energy will be reflected back into your home and the cold will be reflected away.
The EcoPro Under Rafter Insulation Kit is affordable and is a fantastic investment. It includes everything you will need to complete the installation yourself and to start making savings.

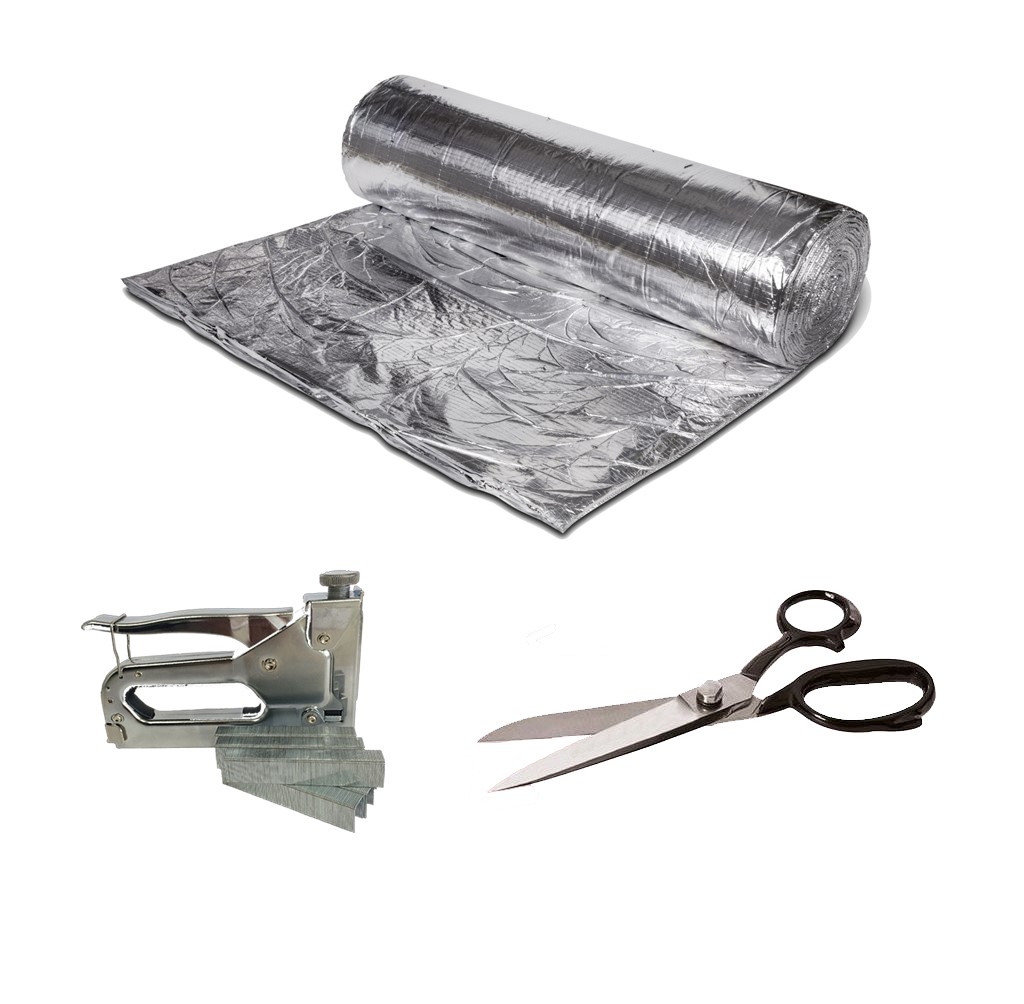

What’s Included in the EcoPro Under Rafter Insulation Kit?
- The EcoPro Multifoil – EcoQuilt Expert 1.5 x 10m (15m²)
This is a High Performing Multifoil Insulation. Performance wise, this product is equivalent to 50mm of Rigid Board Insulation (such as Kingspan / Celotex). In comparison to Fibre Insulation, it also equates to around 100mm.
Our EcoPro Under Rafter Insulation Kit is commonly used by installers as well as homeowners, as the Multifoil Insulation is just 15mm thick. It is also really flexible and easy to install.
- 10″ Stainless Steel Multifoil Insulation Scissors
Scissors suitable for cutting Multifoil Products – as we want to make the whole installation process as easy as we can for you.
- Heavy Duty Staple Gun Kit
You will receive a Heavy-Duty Staple Gun Kit, which includes 5,000 of the 14mm Staples.
EcoQuilt Expert can be installed in either a single or double layer. Check out our How To Videos which show you have to install both a single layer as well as a double layer of EcoQuilt Expert under rafter.
Next Working Day Delivery to anywhere in the UK Mainland
If you would like to discuss this application with one of our helpful team members, feel free to get in touch either Request a Call Me Back or Submit an Enquiry!
FREE GIFT
Spend £500 + VAT and Choose a FREE GIFT at the checkout!
Free Gifts Include: Thermaseal Foil Joining Tape, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
How to Install a Single Layer of EcoQuilt Expert Under Rafter
How to Install a Double Layer of EcoQuilt Expert Under Rafter
How To Insulate Under Pitched Roof Rafters with the EcoPro Loft Insulation Kit
How to Insulate Under Rafter
-

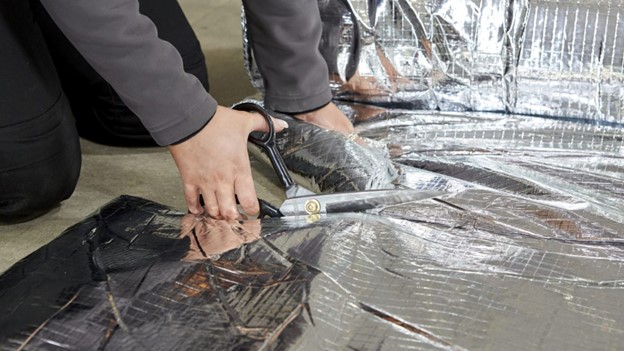

Cut the Material Required
Measure the amount of material required for your first strip and cut. It is most common for customers to insulate horizontally, but the choice is yours.
-

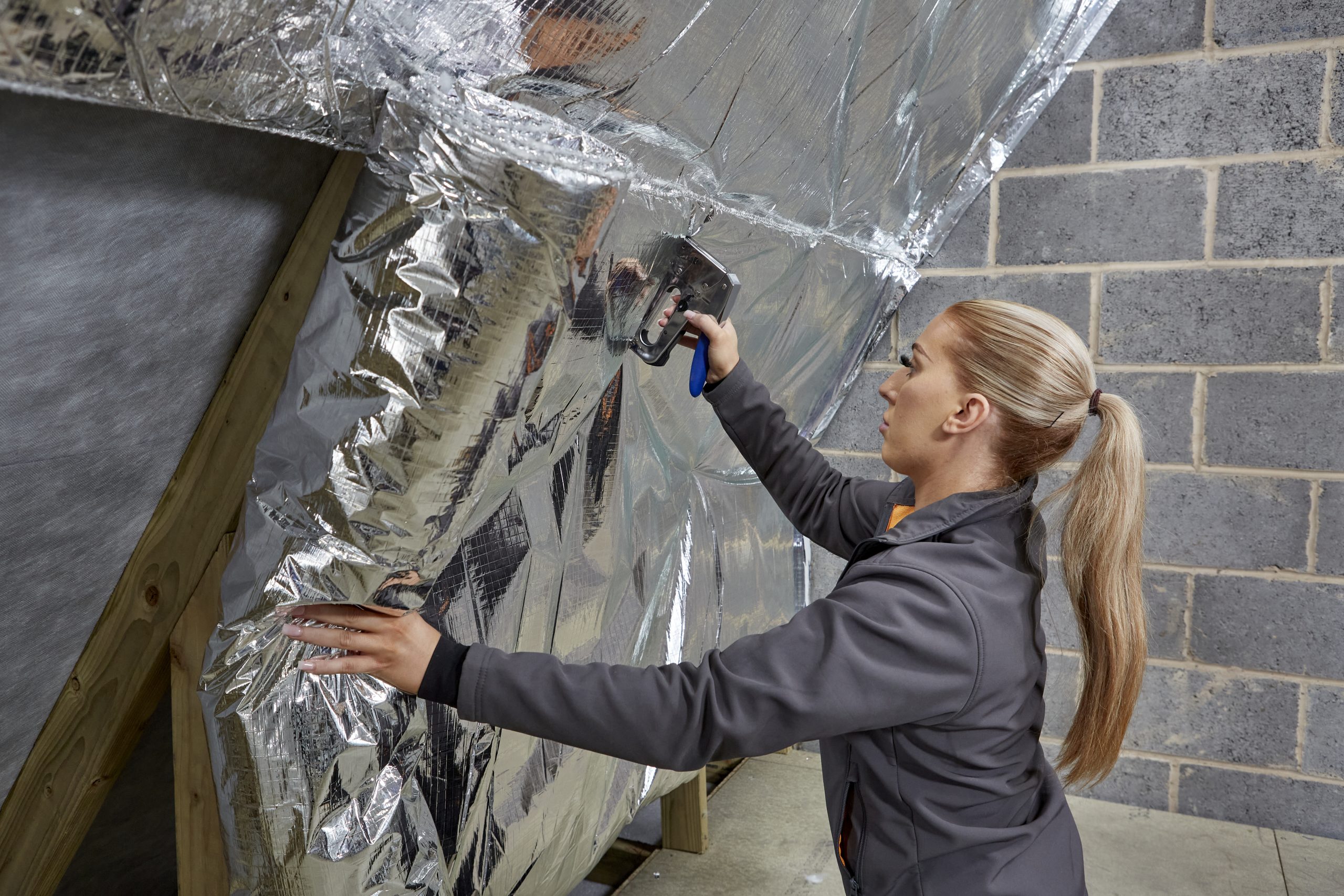

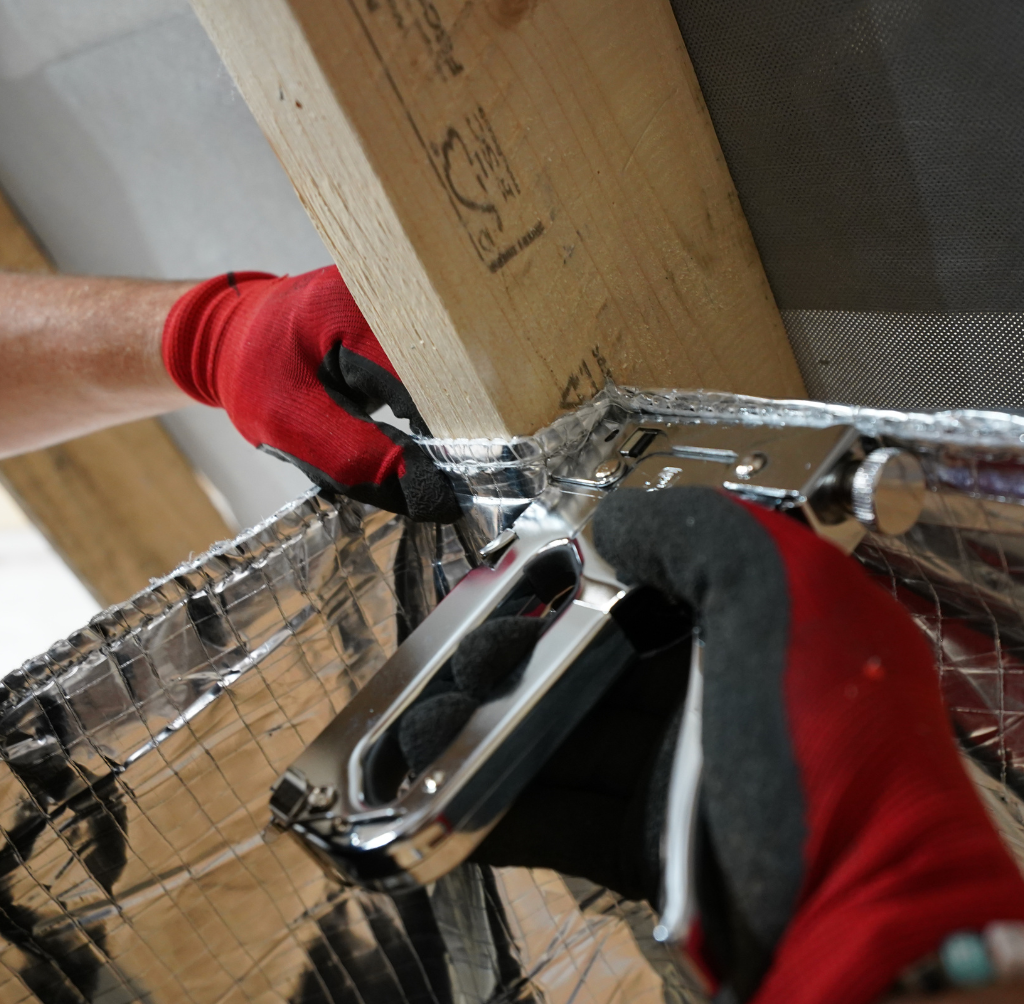

Staple the Multifoil in to Place

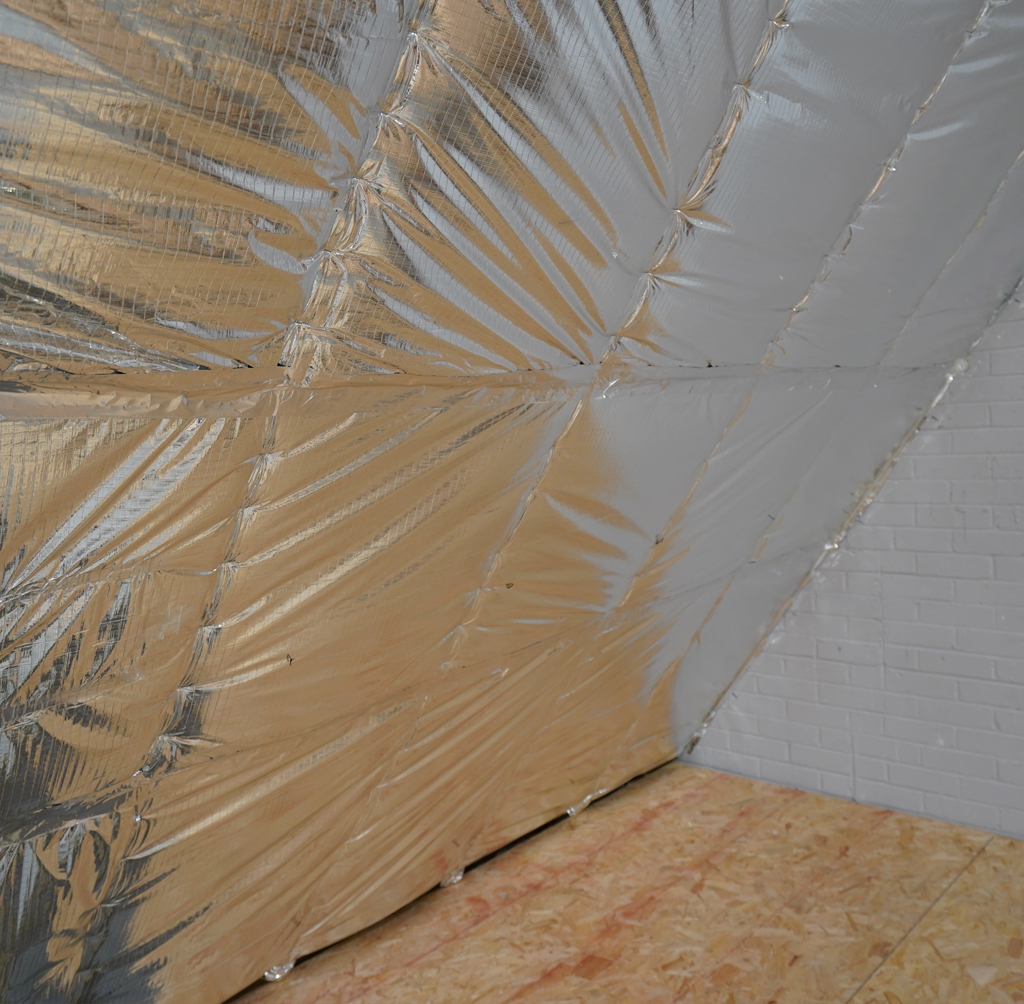

Staple the Multifoil to the underside of the Roof Rafters. We advise stapling every 300mm to ensure that the material is held securely in to place. Pull the material nice and straight where possible, to keep it neat and also to make the cutting process easier for you too.
-
Install your Second Layer...
When installing your second layer, overlap the material on to the former layer by 50mm. Continue insulating until you have full coverage, following the above instructions.
-

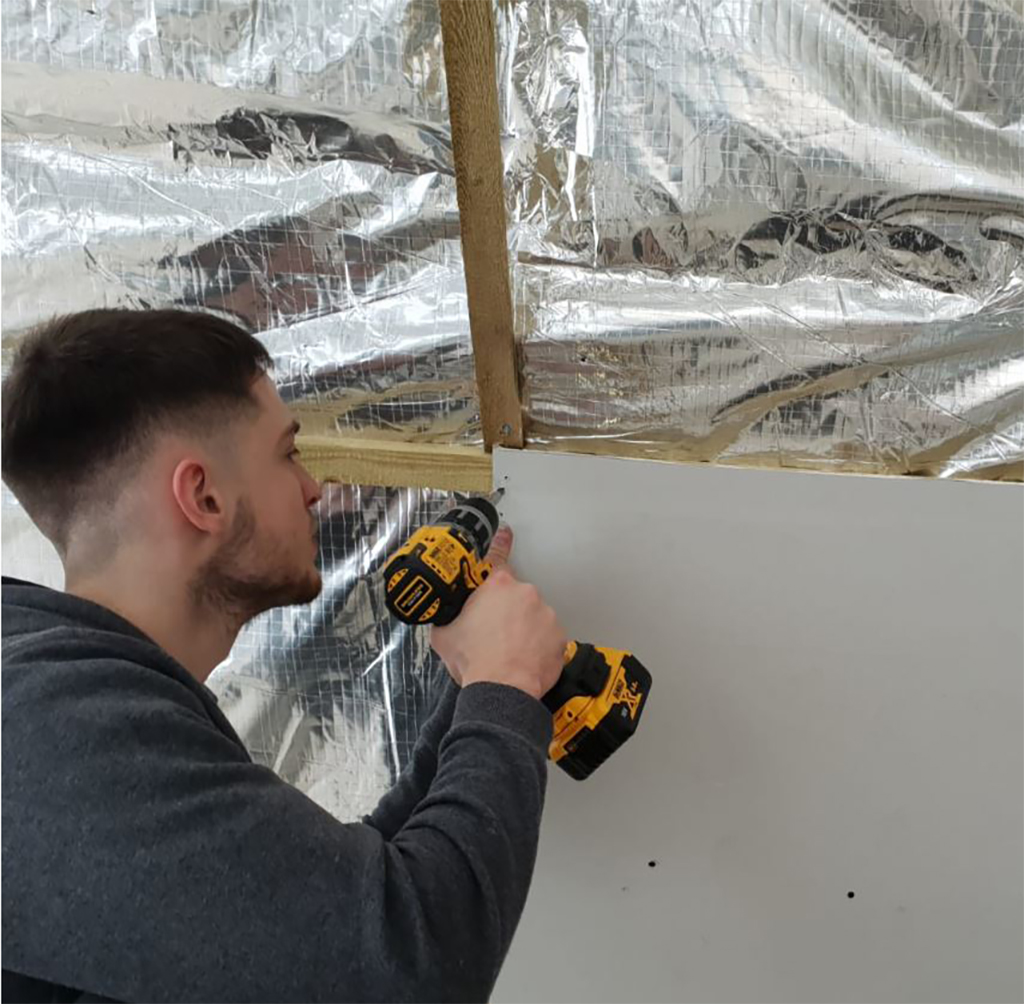

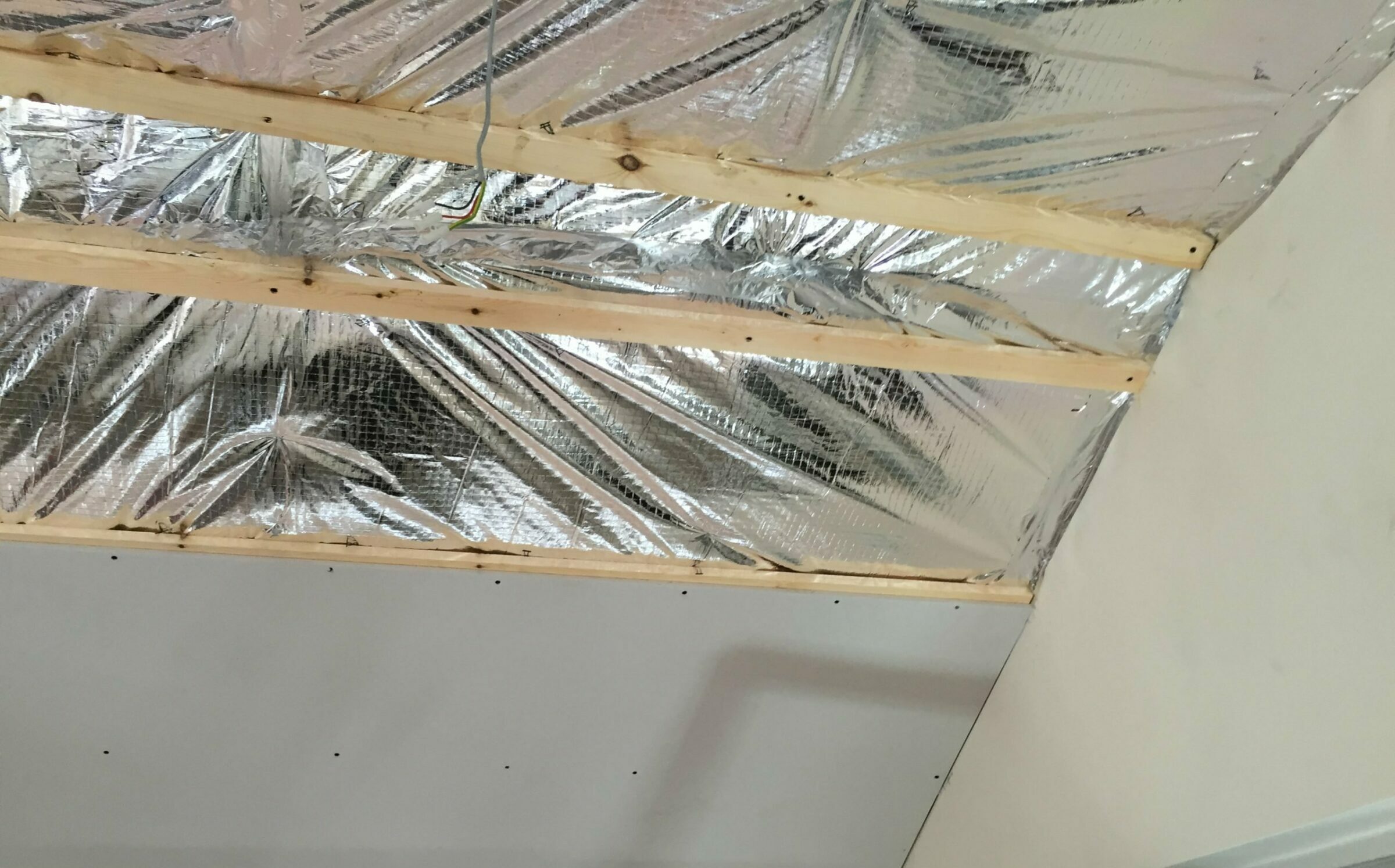

Finish as you please!

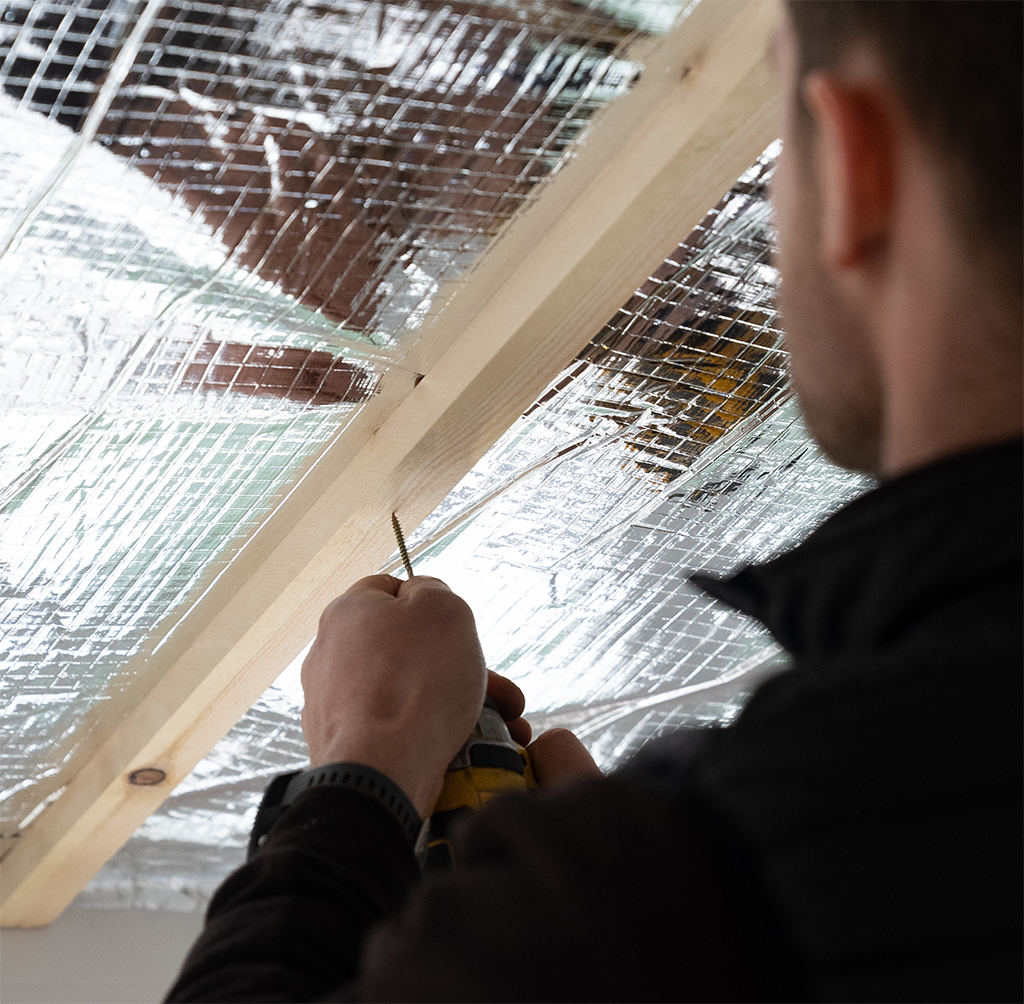

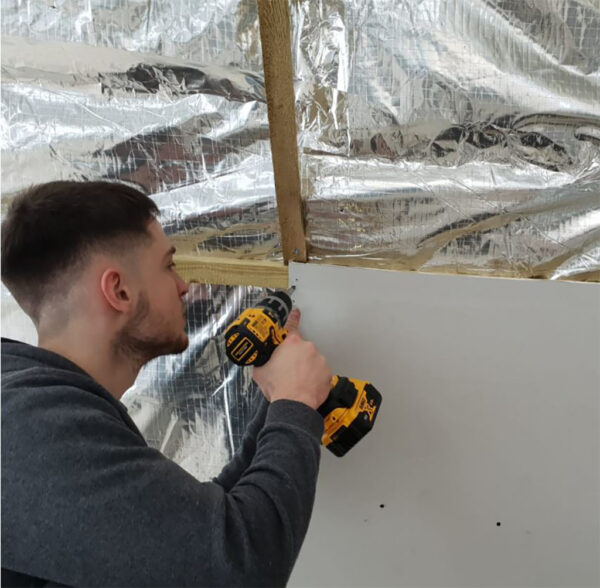

You may wish to leave the insulation exposed - which is fine. However, it is quite common for customers to nail / screw battens into place before boarding - if they are wanting to create a usable room. This is not required but is popular option.
-

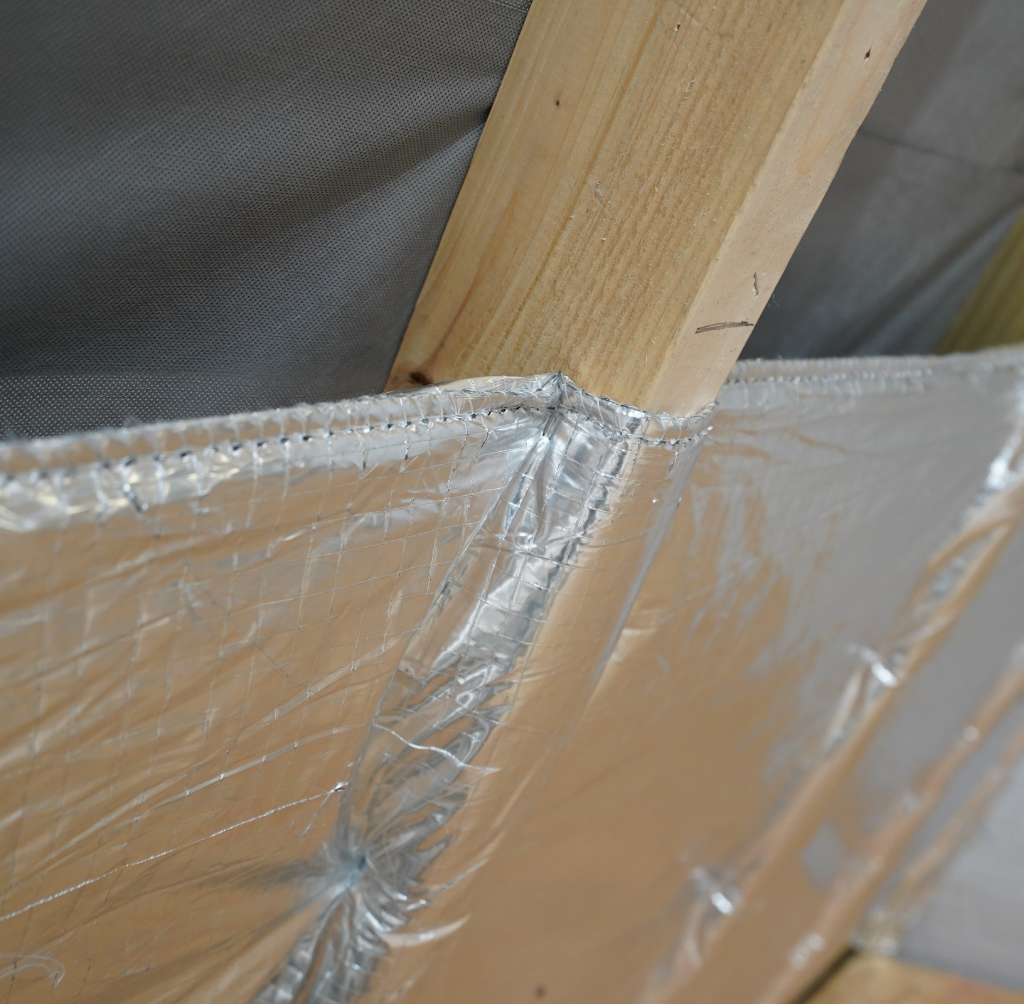

If you would like to double the performance, you can!

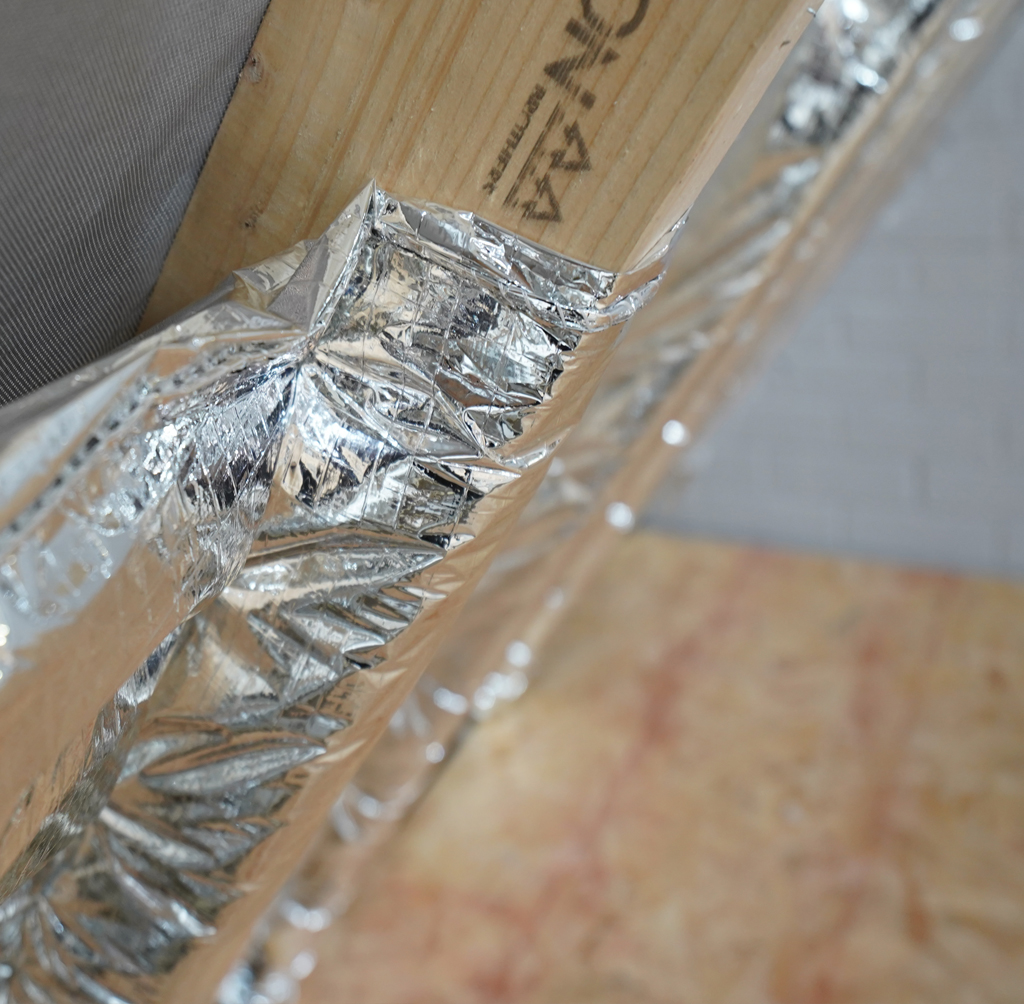

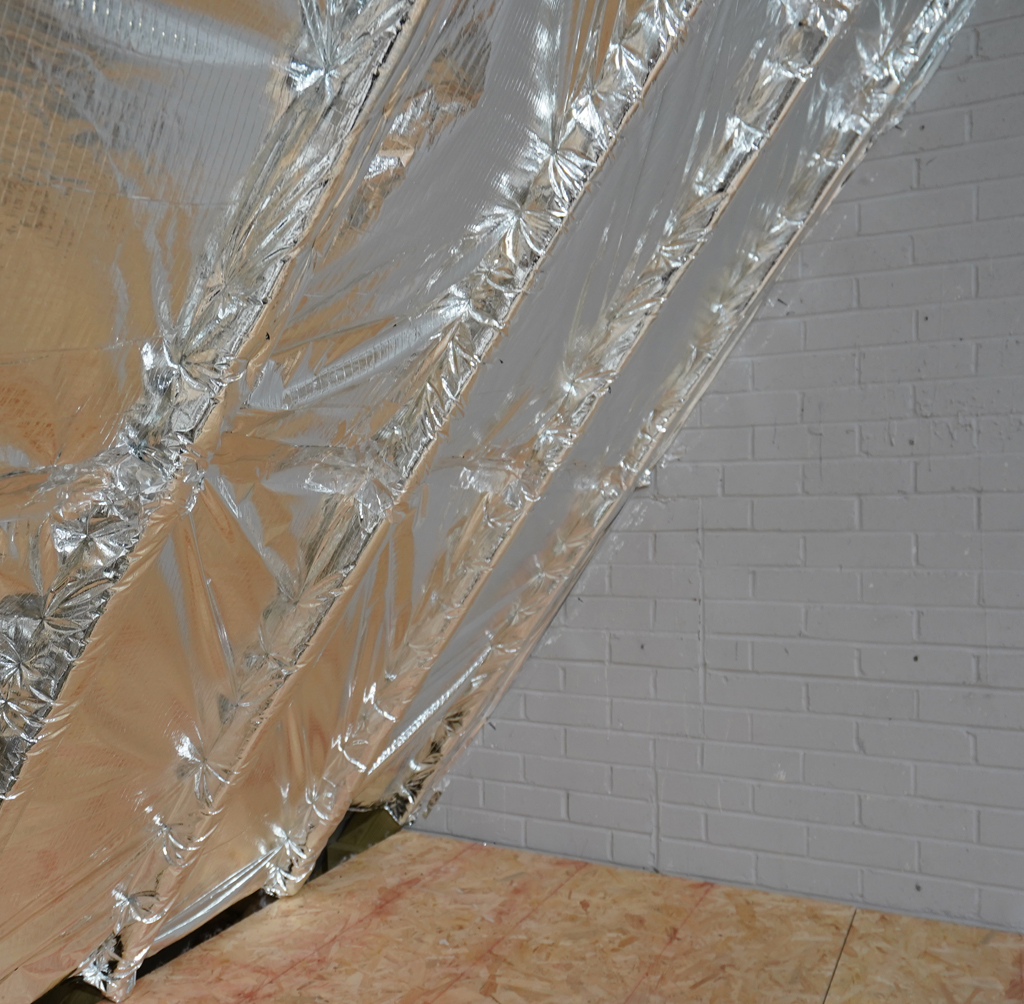

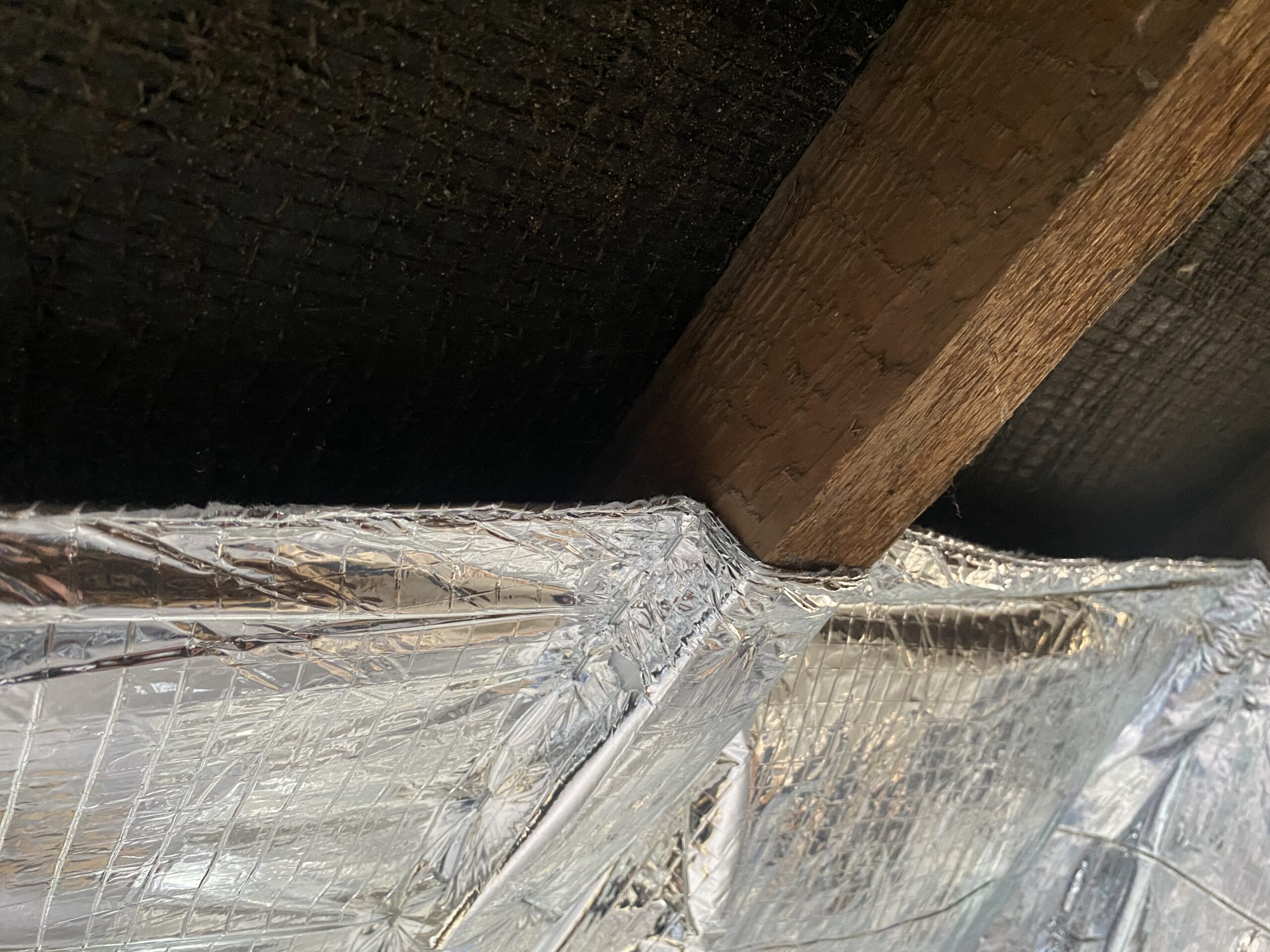

You can double the performance by installing two layers. To save on space, you recess the first layer to the side of the roof rafter. This way you still have an air cavity behind the product, but you also have an air cavity between the first and the second layer too.
-
Staple next Layers
Continue installing your first layer, until you have full coverage.
| Length | 10m |
| Width | 1.5m |
| Thickness | 15mm (5mm Compressed) |
| Roll Coverage | 15m² |
| Layers | 6 |
| Weight | 5.5KG |
| Core R-value | 0.93m²K/W |
| Roof R-value | 1.83m²K/W |
| Wall R-value | 2.27m²K/W |
| Floor R-value | up to 5.56m²K/W |
| Foil Emissivity | 0.05 |
| 0.05 | 600MNs/g |
Can I double up on the insulation?
Yes, you can do two layers of the EcoQuilt Expert Insulation. We recommend using a 25mm wooden batten over the first layer of insulation and attaching the second layer to the wooden battens. Or if the rafters of your loft are long enough you can recess the first layer of insulation into the rafters and then the second layer can sit across the rafters.
What should I use to cut the insulation?
In this kit, we provide a pair of 10” multifoil insulation scissors which are perfect for the job.
Do I need to overlap the insulation?
Yes, you do need to overlap the insulation otherwise you won’t get the best thermal performance. We don’t recommend taping and sealing the insulation in this application so overlapping the insulation will stop any draughts from getting in and warm air from escaping.
Will the foil insulation cause any problems with damp?
No, actually this will help prevent damp and mould and it’ll help reduce the risk of condensation.
Can I board over this insulation?
Yes, you can board over this insulation by adding wooden battens over the top of the insulation and attaching what you’d like to board over with to the wooden battens.
Do I need any specific PPE to complete this job?
No, you don’t need any protective clothing, masks, or safety goggles as there are no harmful fibres in the insulation.
