Lowest Trade Price – YBS BreatherQuilt
We have a BreatherQuilt Trade Pallet for those of you looking to order in bulk. This deal provides a cost-per-unit saving.
BreatherQuilt is the ideal multifoil insulation material for both new builds and refurbishment pitched roof projects. It also outperforms and is more cost effective than TLX Gold.
BreatherQuilt breaths and insulates – so is duel purpose. This means it replaces the requirement for a traditional breathable felt / breather membrane and it assists in achieving a lower u value. It is made up of highly reflective foil and boasts 11 insulating layers.
If you do not require a pallet of BreatherQuilt – you can purchase single rolls here.

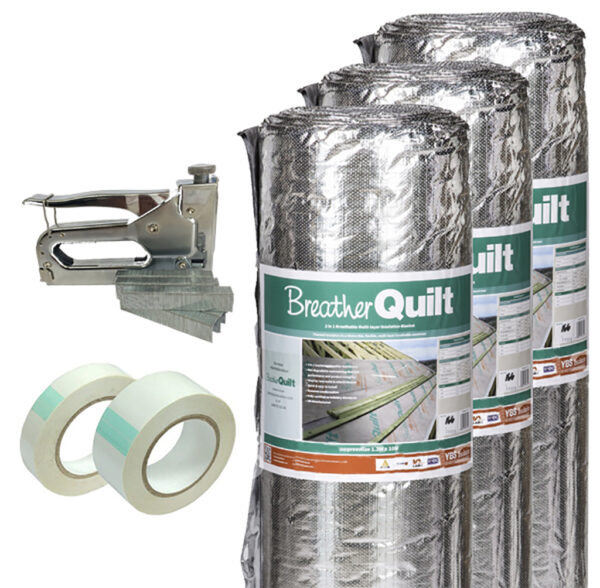

Our YBS BreatherQuilt Trade Pallet Deal consist of the following;
- 15 x BreatherQuilt 1.2m x 10m (180m²)
- 2 x Thermaseal Weatherproof Tape
- 1 x Free Heavy Duty Staple Gun & 5,000 Staples
- Next Working Day to the UK Mainland
If you are going through building regulations and need to achieve specific U Values – YBS BreatherQuilt Multifoil Insulation has been tested and certified to the latest industry standard, which includes LABC and BDA KIWA Agrèmont.
Please visit our free and instant online U-value calculator to see how BreatherQuilt can benefit your project.
Want to compare YBS BreatherQuilt to other Breathable Multifoils such as TLX Gold? Visit BreatherQuilt-Insulation.com here
FREE GIFT
Spend £500 + VAT and Choose a FREE GIFT at the checkout!
Free Gifts Include: Thermaseal Foil Joining Tape, Heavy Duty Staple Gun Kit, Multifoil Insulation Scissors or Thermaseal Double Sided Tape.
How To Install BreatherQuilt Insulation
Triple Layer 0.18 Re-Roof System - By Ecohome Insulation
BreatherQuilt vs TLX Gold Multifoil Insulation Comparison
How to Fit BreatherQuilt over Rafter
-
Install First Layer of BreatherQuilt
Starting at the bottom of the roof, roll BreatherQuilt across the rafters and staple in place at 300mm intervals. Ensure BreatherQuilt is draped in-between each rafter as opposed to being pulled taught. It is vital that a 10mm clear gap is formed at the center of all rafters. The gap is between the top layer of BreatherQuilt and installed tile batten.
-
Fixing and Cutting
Ensure BreatherQuilt is stapled at 300mm intervals, using min 14mm deep staples, or nails. BreatherQuilt can be cut with either Multifoil Scissors, or a Cutting Knife. Both the cutting tools, along with a Staple Gun & Staples are available in our Multifoil Fitting Kit.
-
Horizontal Overlaps
Once the first run of BreatherQuilt is fully fixed, and is draping into the rafters, proceed next by taping a line of 50mm Thermaseal Double Sided Tape along the edge of the material. Install the next layer of BreatherQuilt in the same manner as the first. Overlap the first and second layer by 100mm, ensuring the double sided tape is secure and sealed.
-
Vertical Joints
Where 2 layers of BreatherQuilt meet on vertical sections, we advise these layers to be butt jointed, not overlaps. These joints should be taped over with a suitable 50mm waterproof duct tape.
-
Final Detailing
At the eaves BreatherQuilt should extend onto a suitable eaves carrier. Proceed with tile/slate battens and tile/slates.
| Width | 1.2m |
| Length | 10m |
| Thickness | 40mm (7mm Compressed) |
| Roll Coverage | 12m² |
| Layers | 11 |
| Weight | 8KG |
| Core R-value | 1.17m²K/W |
| Roof R-value | 1.62m²K/W |
| Foil Emissivity | 0.05 |
| Water Vapour Resistance | 0.15MNs/g |
What does BreatherQuilt consist of?

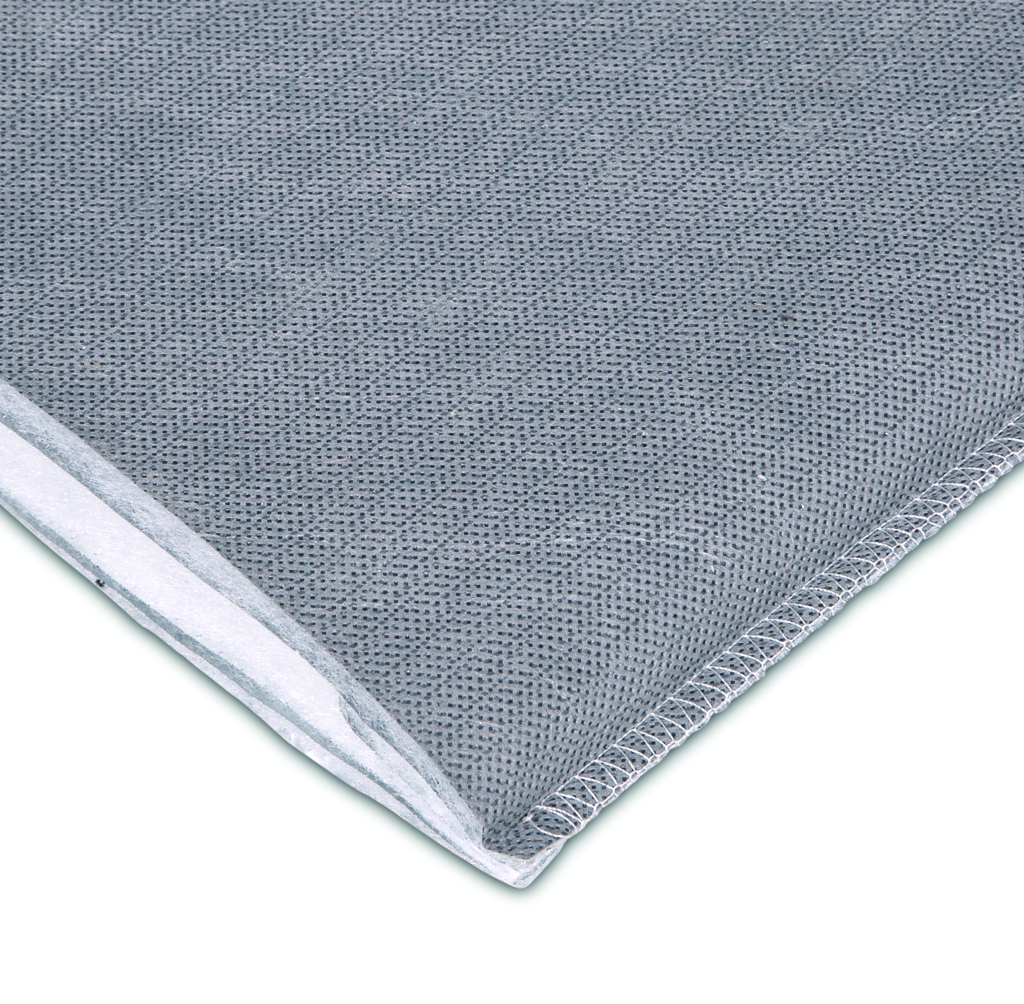

BreatherQuilt consists of 11 itch-free layers including True Aluminium Foils as the Inner layer. BreatherQuilt’s external layer is a high tensile breathable felt. The other 9 layers consists of recycled waddings, PE Foams, and other reflective foils.
Is BreatherQuilt harmful?
BreatherQuilt contains no harmful fibres and does not release any toxic gasses when cut or installed. When installing BreatherQuilt, there is no requirement for any masks, PPE or gloves.
What thickness is BreatherQuilt?
BreatherQuilt is available in just one thickness, which is 40mm at a relaxed thickness and will compress down to 7mm.
Do BreatherQuilt require airgaps?
To gain the best thermal performance, we recommend a minimum cavity/batten of 25mm both sides of the insulation. This is to allow the product to expand and reflect. If a cavity is removed, the performance would reduce by approx 20%.
Is BreatherQuilt fireproof?
BreatherQuilt has a Class E Euro Fire Classification Certificate. BreatherQuilt is not fully fire-proof, however the true aluminium inner layer are flame proof, meaning if a naked flame touches the product, it will smoulder as opposed to spreading.
What’s the difference between BreatherQuilt and SuperFoil SF19BB?
BreatherQuilt and SF19BB are both breathable multifoils for over rafter use. BreatherQuilt is UK manufactured and is fully certificated by both LABC and BDA. BreatherQuilt also has a true aluminium foil as the internal layer, compared to a met-pet foil layer.
